Large Aluminum Gantry Plates, Bed & Fixture Plates

Bed plates, base plates, T-slot & vacuum fixture plates, color anodized

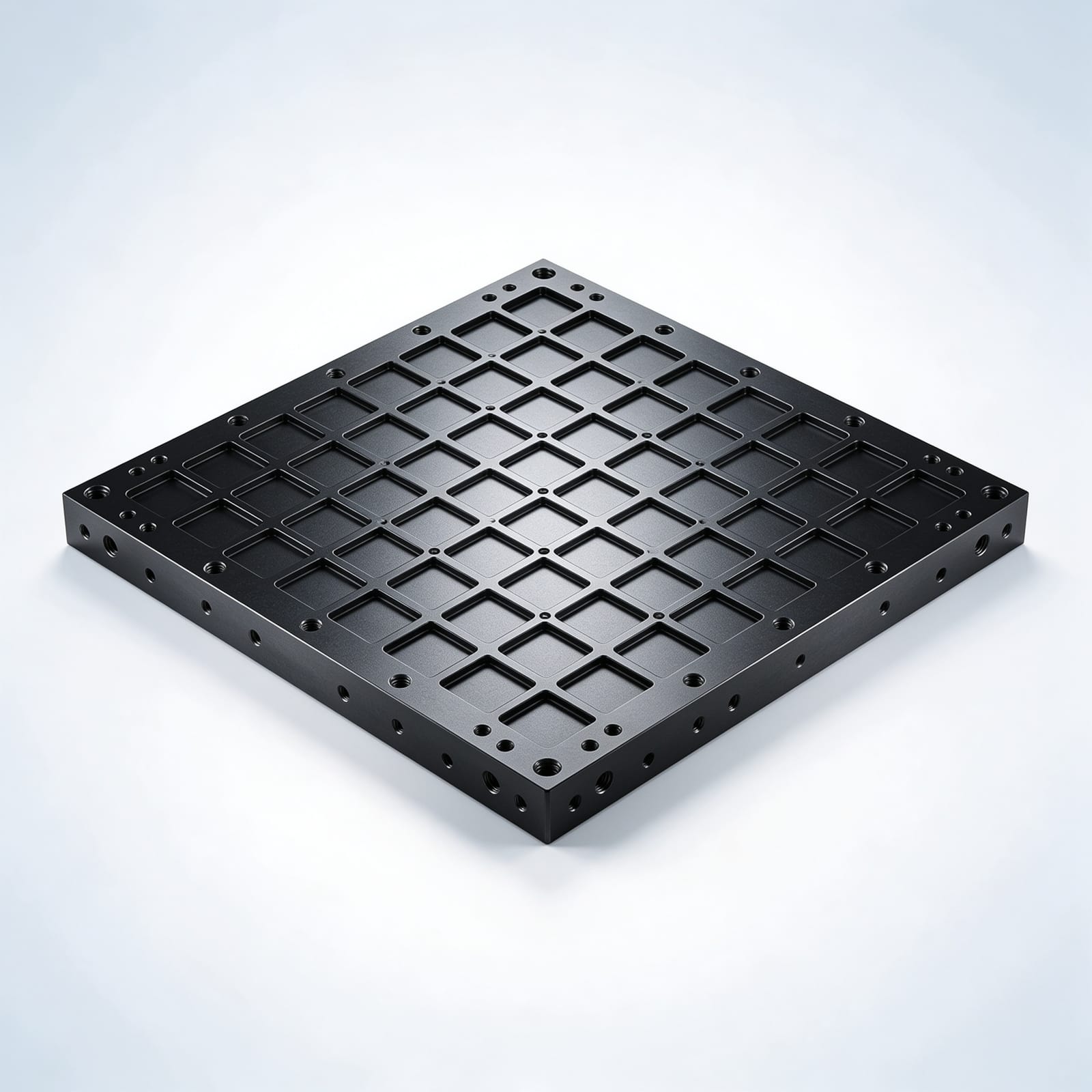

Custom large-format aluminum plates machined on gantry centers beyond standard VMC travel: machine bed plates, base plates, tooling and wall plates, T-slot and vacuum fixture plates, optical breadboards and portal beams, with grid holes, pockets and tightly controlled flatness and parallelism. Stress-relieved material and staged machining keep big plates flat; available in black, blue, silver, gray, red, gold, green or orange anodizing.

Send Drawings · Free Quote WhatsApp Us

±0.01mm

Precision tolerance

3–7 days

Prototype lead time

50+

CNC machines

ISO 9001

Certified

Large Gantry & Fixture Plates - YouSu Precision custom CNC parts, Shenzhen China

Capabilities

Capabilities for your custom large gantry & fixture plates

✓

Large-travel CNC gantry machining centers

✓

Bed plates, base plates, tooling & wall plates

✓

Grid holes, T-slots & pockets on large plates

✓

Flatness & parallelism control for large faces

Materials

Materials we machine

Aluminum 6061 / 5052 / 7075 Cast Aluminum Tooling Board Steel Plates

Industries

Where these parts are used

Automation Equipment Machine Tools Semiconductor Printing & Packaging Robotics Optical & Inspection

Example parts

Custom large gantry & fixture plates we make to order

These are representative parts made to customer drawings — every piece is custom. CMM inspection, full dimensional reports and your choice of finish, from one prototype to volume production.

Large Aluminum Machine Bed Plate

Black Anodized Aluminum

Automation Equipment Base Plate

Blue Anodized Aluminum

Vacuum T-Slot Fixture Plate

Clear Anodized Aluminum

Structural Frame Base Plate

Gray Anodized Aluminum

Large T-Slot Tooling Plate

Red Anodized Aluminum

Optical Breadboard Plate

Gold Anodized Aluminum

Large Machine Wall Plate

Green Anodized Aluminum

Gantry Portal Beam Plate

Orange Anodized Aluminum

FAQ

Large Gantry & Fixture Plates — common questions

What is the maximum plate size?

Our gantry centers handle plates beyond standard VMC travel; send dimensions for confirmation.

Can you guarantee flatness on large plates?

Yes, with stress-relieved material and staged machining we control flatness and parallelism to drawing.

Do you build T-slot and vacuum fixture plates?

Yes, we make custom T-slot and vacuum fixture plates, optical breadboards and machine bed plates.

How to order

Get your custom parts made

1 · Send drawings

Upload STEP/IGES 3D models with 2D drawings, tolerances, material, finish and quantity via the quote form.

2 · Quote in 24 hours

You get pricing, lead time and DFM feedback; prototypes ship in 3–7 days and production runs 1–4 weeks.

3 · Inspected & documented

CMM and first-article inspection, EN 10204 3.1 material certificates and full dimensional reports before DHL/FedEx/UPS dispatch.

Request a quote for large gantry & fixture plates

Send STEP/IGES 3D models and 2D drawings with tolerances, material and quantity. We reply within 24 hours with pricing, lead time and DFM feedback.

Upload Drawings · Free Quote Email: Neal@yousucnc.com

Tel / WhatsApp: +86 181 2454 6236·Mon–Sat 8:00–18:00 (GMT+8)
